TexAQS 2006 TOPAZ Lidar data

August 30 - Final Data

Previous Flight Archive Calendar Next Flight

Flight #16
Takeoff: 13:17 CDT
Total flight time: 6.4 hours

Flight sampled the ozone plume to the south of the urban area, emitted into clean, northerly post-cold-frontal winds of about 5 m/s. Five east-west legs and a final southwest-northeast leg found a plume that reached an estimated 130-140 ppb reaching only about 1.2-1.3 km height. Earlier cross sections closer to the sources indicated lower ozone concentration of approx. 110 ppb, but later cross sections farther from the urban/ship channel had the higher concentrations.

Select an image to view full resolution

Ozone Cross-section

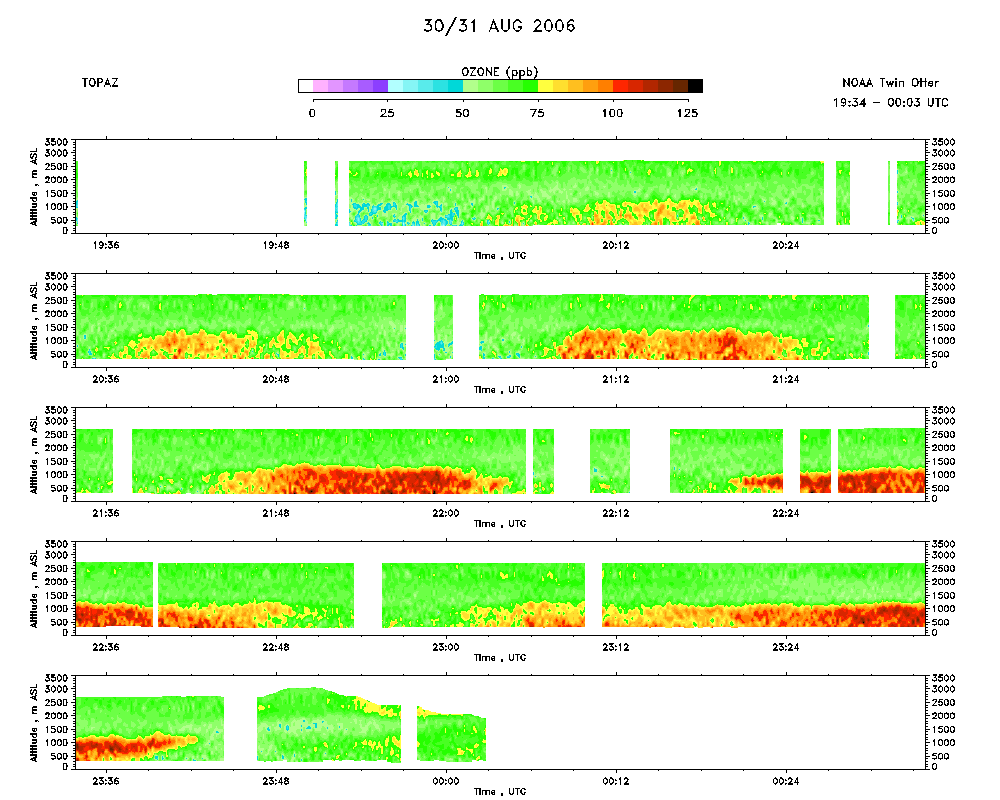

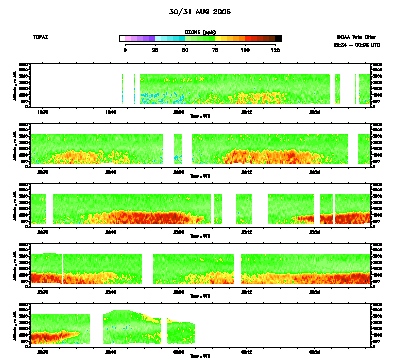

Ozone cross-section - August 30
download ICARTT format data (ict file)
download simple ASCII data (txt file)		 Aerosol Cross-section

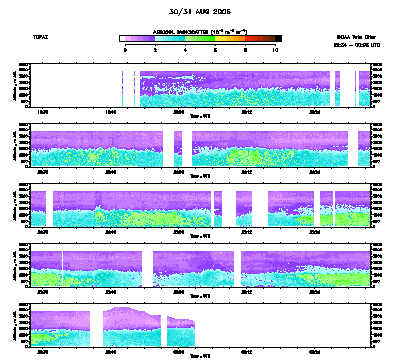

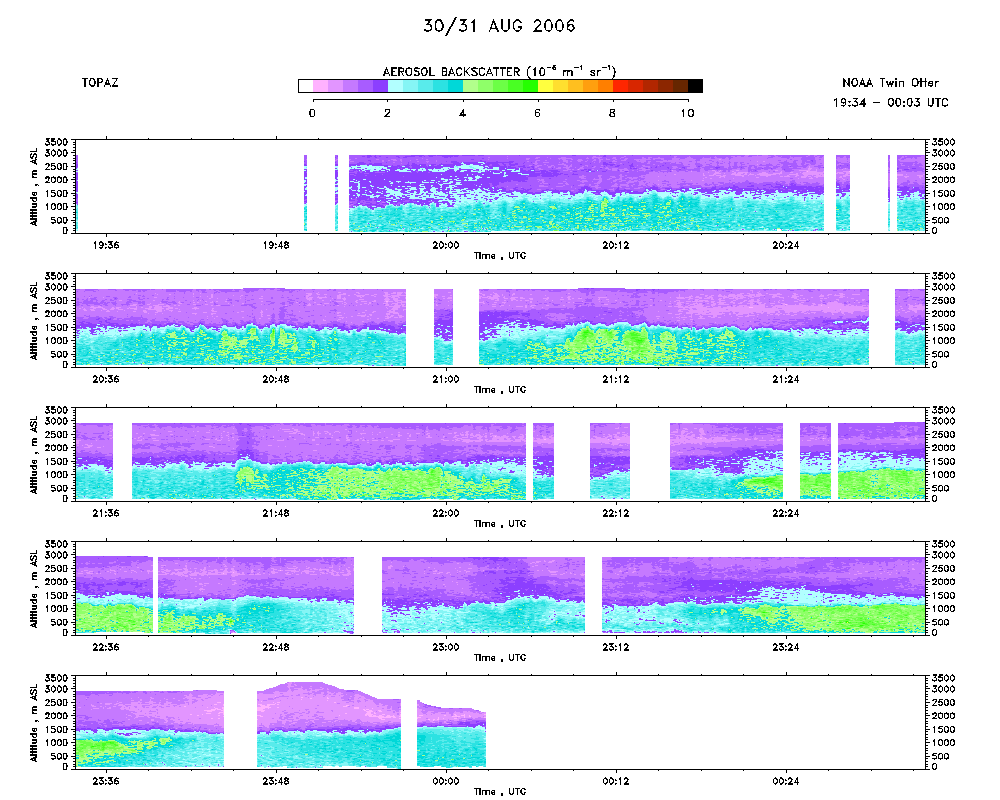

Aerosol cross-section - August 30
download ICARTT format data (ict file)
download simple ASCII data (txt file)
Ozone Map

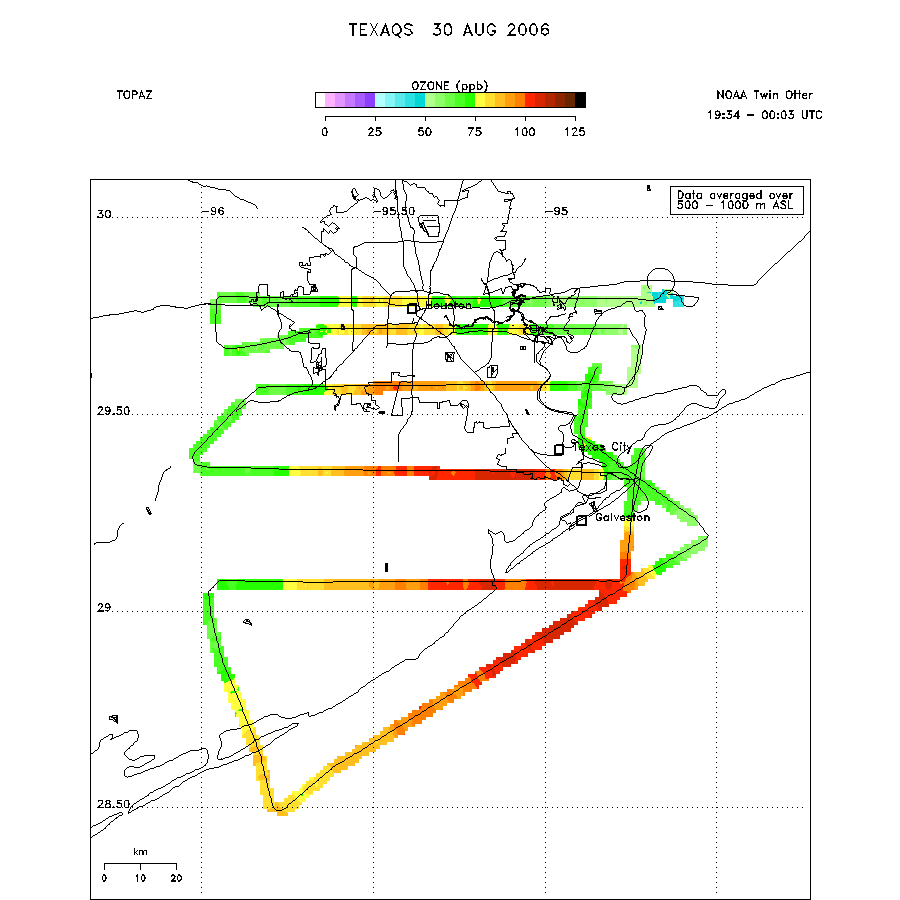

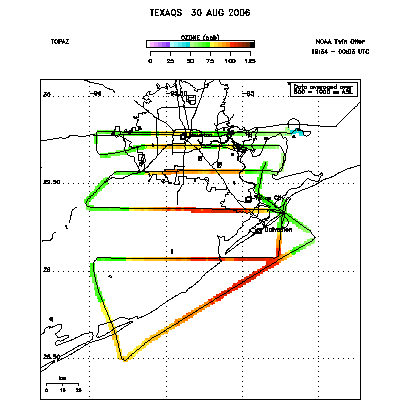

Ozone map - August 30
 Mixed Layer Height Map

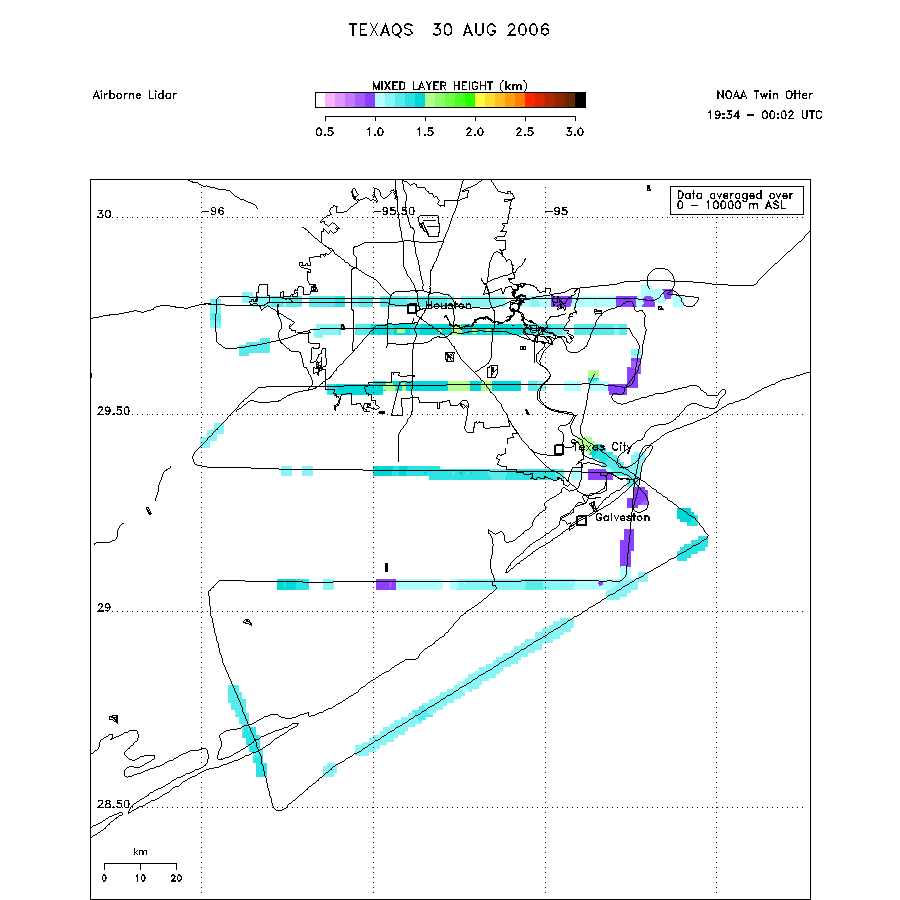

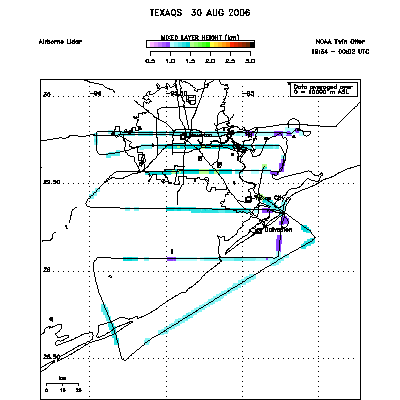

Mixed layer height map - August 30
download ICARTT format data (ict file)
download simple ASCII data (txt file)
