R/V Ronald H. Brown Platform Info

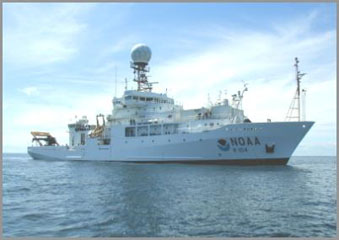

NOAA Research Vessel Ronald H. Brown

NOAA's Marine Operations Center (MOC) outlines the operational capabilities and shipboard facilities of the NOAA Research Vessel Ronald H. Brown. The instrumentation (payload) capacity of Ronald H. Brown is not limited by weight or power constraints. Typically, atmospheric sampling instruments are placed in seagoing laboratories (sea-tainers) on the forward upper (02) deck. Air samples are collected using towers or masts that extend 6-8 meters above the deck (approximately 16 - 18 meters above the water line). Sampling is conducted around the clock, unless contamination from the ship exhaust is expected to be prolonged. Remote sensing meteorological measurements are also included in the instrument package to define the structure and extent of the MBL and thus place the chemical measurements in context. Augmentation of the on-board radar wind profiler with additional lidar instruments is critical for this activity.

Performance Specifications and Facilities

Length (ft/m)274 / 83.5
Range (nm/km)11,300 / 20,900
Endurance (days)35
Cruising speed (kts / mps)12 / 6.2
Maximum speed (kts / mps)15 / 7.7
Officers / Engineers / Crew5 / 4 / 16
Scientific staff34 (maximum)
Laboratory/office space (sq. ft.)4100
Telecommunications, dataINMARSAT-A
Telecommunications, voiceCell & satellite
phones, VHF radios

The ship is capable of staying out to sea for long periods, which allows for repeated sampling of air masses in a particular region, such as the Gulf of Maine, concentrated in the Boston, MA and Portsmouth, NH areas. However, with an average cruising speed of 12 knots the ship is not a rapidly moving platform. Within certain constraints NOAA R/V Ronald H. Brown is capable of extended near-shore running, which is especially valuable for examination of pollution plumes advected off the shore and for examination of meteorological phenomena such as land-sea breeze effects. The ship is fully capable of nighttime operations, though with some restrictions when near shore.

An instrumented ship is an ideal way to study the meteorological and chemical processes that are occurring off the coast of New England. A ship can be used to sample polluted air masses as they move offshore, study the chemical transformations in the polluted marine boundary layer, and characterize polluted air masses at they move onshore.
