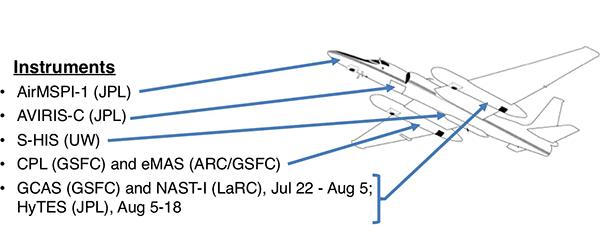

| Position | Instrument | PI | Institution | Geophysical parameters | Technique |
|---|
| Nose | AirMSPI-1 | David Diner | JPL | Aerosol and cloud properties, (research: aerosol plume height) | Multiangle Spectro-Polarimetric Imager |
| Q-bay | AVIRIS-C | Rob Green | JPL | Vegetation types, effective fire temperature, H2O | Vis-SWIR spectrometer |
| Pod | CPL | Matt McGill | NASA GSFC | Backscatter profile, depolarization ration, aerosol extinction profiles, aerosol layer type | 3-channel backscatter lidar with polarization |
| Pod | eMAS | Steve Platnick | NASA GSFC | Cloud and aerosol properties, (research: FRP) | Vis-IR scanning spectrometer |
| Pod | GCAS | Scott Janz | NASA GSFC | NO2, HCHO, SO2, CHOCHO, O3 | UV-Vis-NIR spectrometer |
| Pod | HyTES | Simon Hook | JPL | Land surface temperature, SO2, CH4, NH3 (research NO2, O3) | TIR spectrometer |
| Pod | NAST-I | Allen Larar | NASA Langley | Atmospheric thermodynamic profiles; CO, O3 profiles | IR scanning interferometer |
| Centerline | S-HIS | Joe Taylor | University of Wisconsin-SSEC | Atmospheric thermodynamic profiles; CO2, O3, CO, N2O, CH4, SO2 profiles | IR scanning interferometer |
